Cash register

WALLE MEC

Compact design, elegant black and white colour scheme, low profile and backlit keyboard: these details make Walle Mec the perfect cash register fo your business.

WALLE MEC

Sectors

Suitable for these sectors

Find out how this product can help you do more for your business in less time.

Main features

Customizable graphic functions

32 characters per print line, customizable store logo and end of bill logo with promotional message

Departments and PLU

5 standard keyboard departments expandible to 10, Up to 100 PLUs with numeric code, descriptions of up to 12 characters

Reports

Daily reports and period reports by department, VAT rate, PLU and time slot

Clerk management

Up to 4 with login/logout

Technical specifications

Display

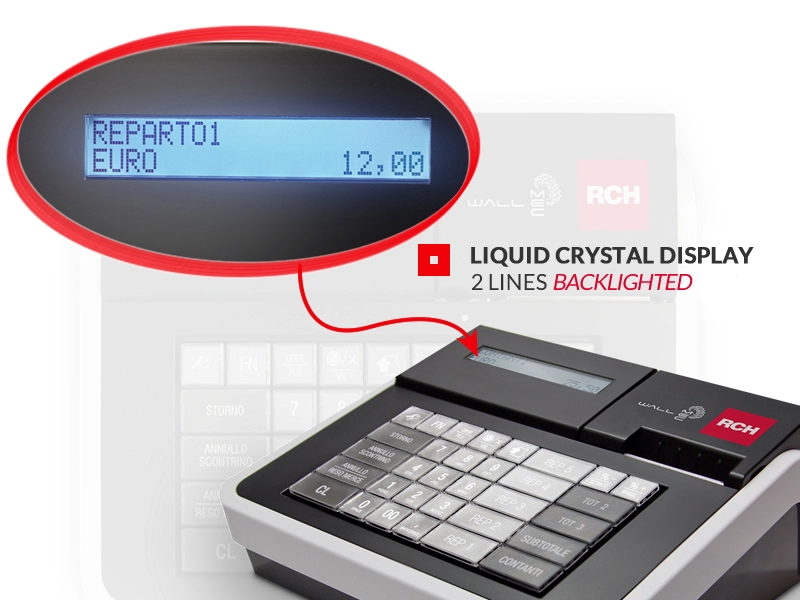

  • Operator: LCD backlight,2 rows, 20 alphanumeric characters
  • Customer: LCD, 2 rows, 20 alphanumeric characters
Keyboard

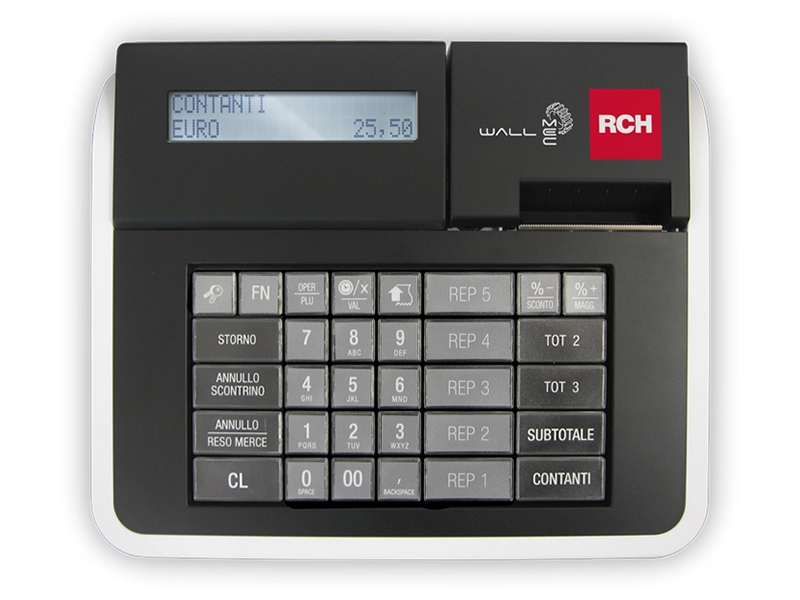

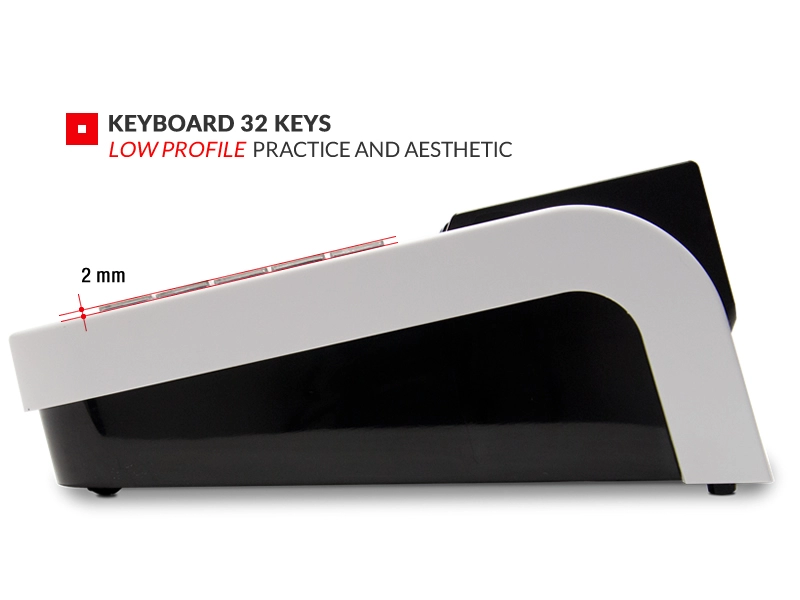

Mechanical keyboard with low profiles keys, 32 keys (13 double keys,5 double functions). Waterproof.

Printer

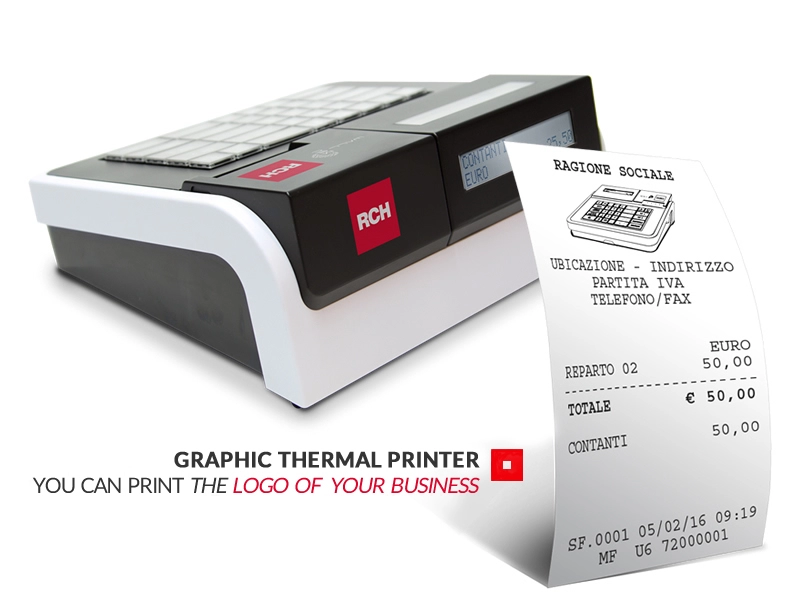

High resolution graphic thermal printer

Printing speed

70 mm/sec, 8 dots/mm

Paper roll

Width 57,5 mm / Diameter 50 mm

Printing system

Easy loading with manual cutter

Printing speed

70 mm/sec, 8 dots/mm

Interfaces
  • 1 RS 232 serial port with RJ45 connector for PC
  • 1 RJ11 port per cash drawer, 12V
  • 1 ethernet
  • 1 micro USB for PC e USB pendrive
Dimensions and weight

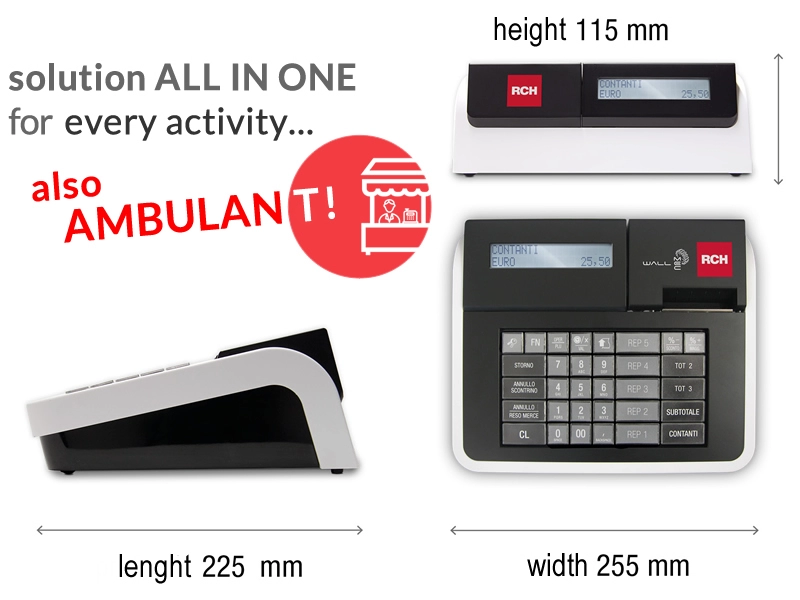

L255 x P225x H115 mm – 1450 g

Cabinet

Compact equipped with compartment for cable disappearance

Sensor

paper out (roll finished), print head temperature, printer cover open

Power Supply

External power supply, output 7Vdc/24W

Accessories

Carriage bag for outdoor use and Battery Pack
