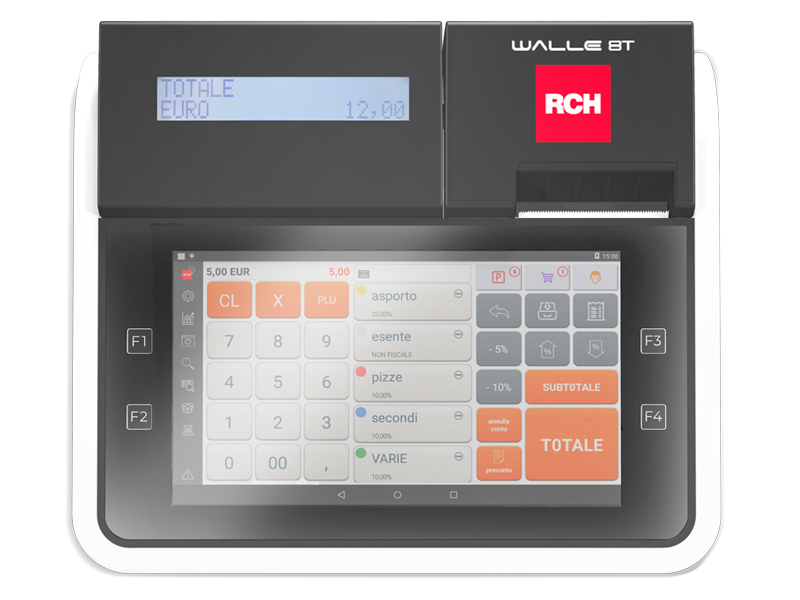

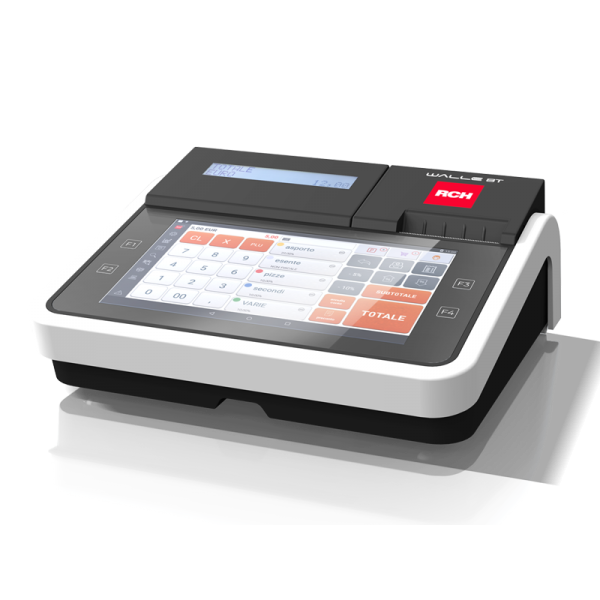

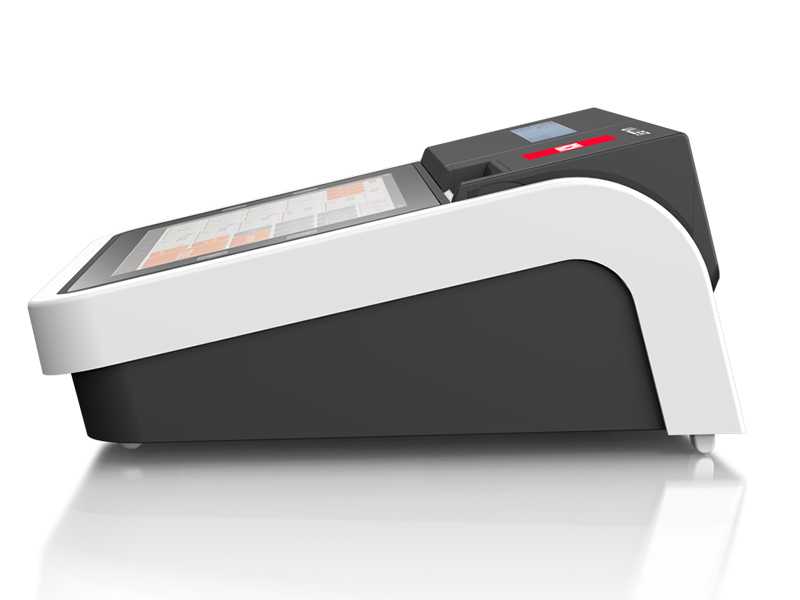

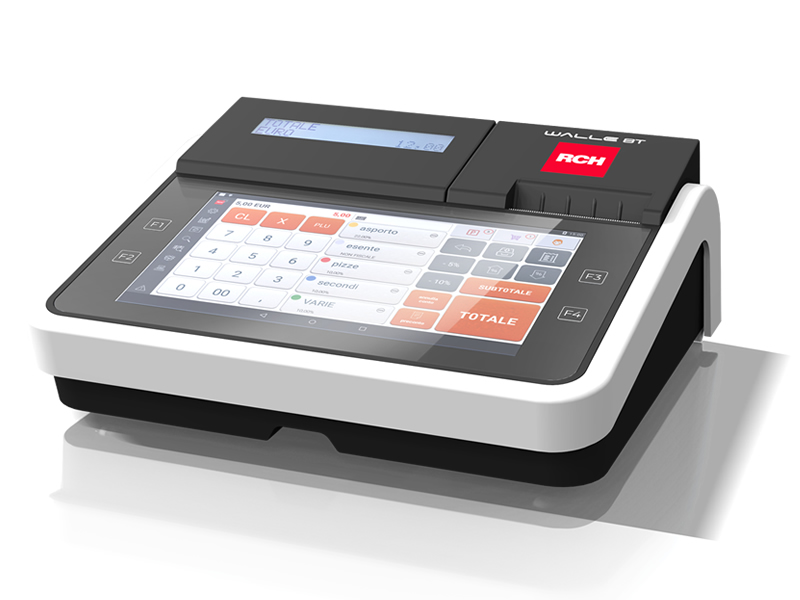

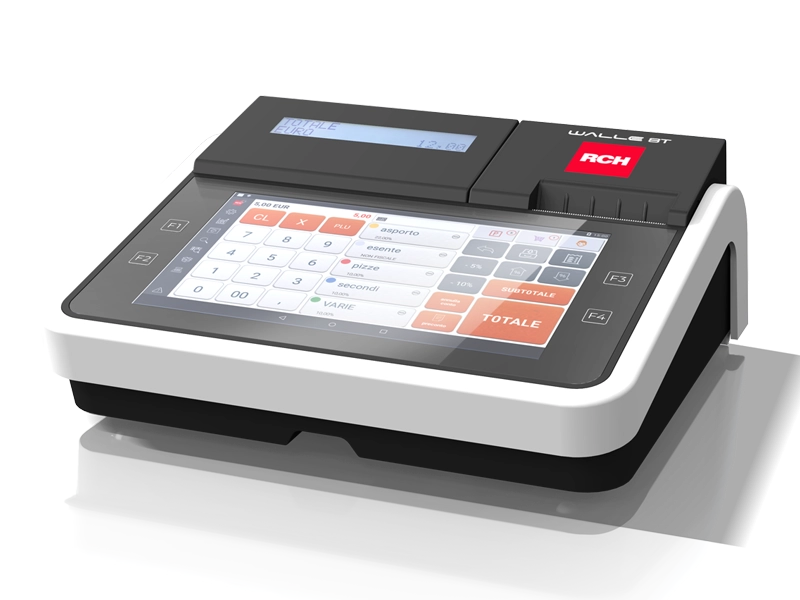

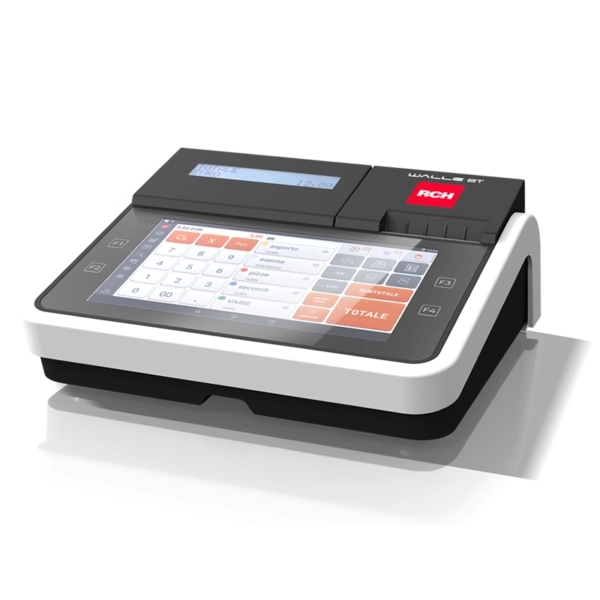

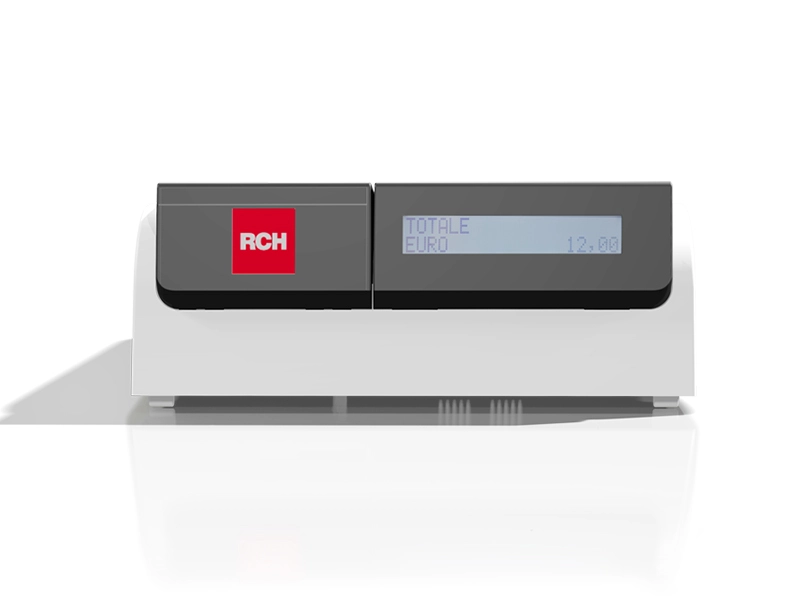

All-in-one cash register Walle 8T

WALLE 8T

Walle 8T is the ALL-IN-ONE solution with a compact and space-saving design, ideal for various businesses, from catering to retail.

The cash register is equipped with an 8” TFT colour keyboard with capacitative touch screen and 1024×600 resolution with high brightness and a high quality thermal printer with easy loading to simplify paper loading operations. Walle 8T guarantees high performance to run your business optimally; it is also easy to use and offers a fast service.

WALLE 8T

Sectors

Suitable for these sectors

Find out how this product can help you do more for your business in less time.

Main features

FRONT END POINT OF SALE
  • All-in-one front-end and back office Android TM application.
  • Fixed ECR numeric keyboard
  • Vertical scroll department keys
  • Graphic display of departments and associated items, with item search by description, barcode, product
  • Possibility to change Keyboard Layout
  • Set of “Programmable Function” keys with gesture-scroll and customisable.
  • Key dedicated to the different payment methods
  • Shopping cart preview
SALES MANAGEMENT
  • Sale by weight
  • Sale by department or by PLU, divided by product category
  • Quick modification of price and quantity
REPORT MANAGEMENT
  • Graphic display of sales statistics in real time
  • Export queries in standard CSV (comma-separated values) format with possibility of saving and sending via email.
SETTINGS MANAGEMENT
  • Item programming (description, price, picture for preview during product search)
  • Authorisation profile management: administrator, manager, salesperson, assistant.
  • Programming of: cash register header, VAT tables, Totals, parameters for reports
  • Document history with possibility of printing them.
  • Access to Tax Functions (management of daily readings and closings)
  • Backup and Restore all data, also using an external memory
  • Automatic data backup each time the application is launched
  • Possibility of changing the display language from the Android system general settings

Technical specifications

DIMENSIONS

L255 x D225x H115 mm – 1800 g

DISPLAY
  • LCD 2 lines by 20 alphanumeric characters, backlit (Operator side)
  • LCD 2 lines by 20 alphanumeric characters (Customer side)
TOUCH SCREEN KEYBOARD

TFT 8” colour, capacitative touch screen, 1024×600 resolution with high brightness

PRINTER

High quality thermal printer, easy loading for simplified paper loading operations

PAPER ROLL

Width 57.5mm +/- 0.5 mm, diameter 50mm

PRINTING MECHANISM

Easy loading with manual cutter

PRINTING SPEED

90 mm/sec. – 8 dot/mm.

CPU

ARM Cortex A9 Dual Core @1GHz

DGFE
OPERATING SYSTEM

Android 5.0.2 or later

MASS STORAGE

8GB eMMC and internal uSD Card

RAM MEMORY

1GB

INTERFACES
  • 1 RS 232 serial for dedicated functions
  • 1 RJ11 connector for drawer connection, 12V.
  • 2 USB ports for external devices
  • 1 Ethernet 10/100/1000
AUDIO

2 internal x 2W speakers – standard

SENSORS
  • Paper run out
  • Head temperature
  • Printer cover open
CABINET

Compact with concealed cable compartment

POWER SUPPLY

External power supply unit, OUT 12Vdc/36W

CUSTOMIZABLE GRAPHIC FUNCTIONS

32 print characters per line, customizable Logo

Accessories

BARCODE READER
USB CONNECTION - DONGLE USB COMBO - WI-FI / BLUETOOTH
DRAWER
