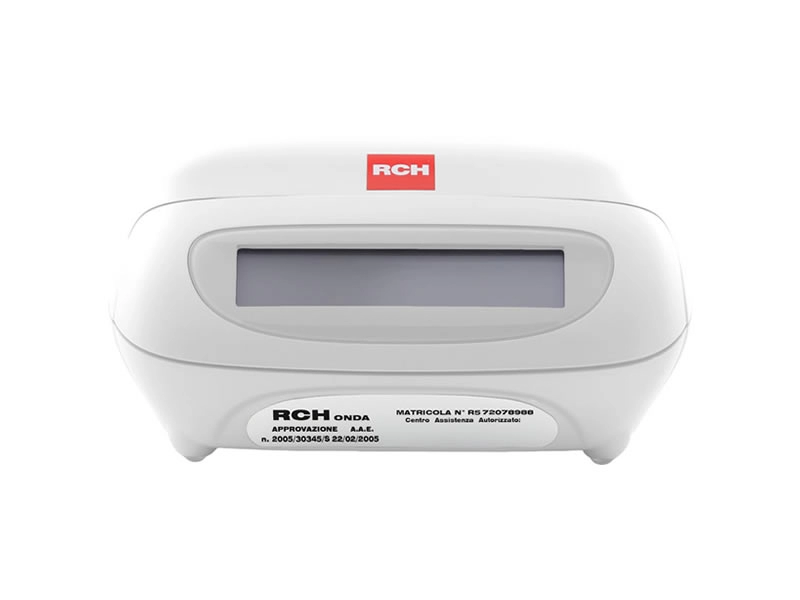

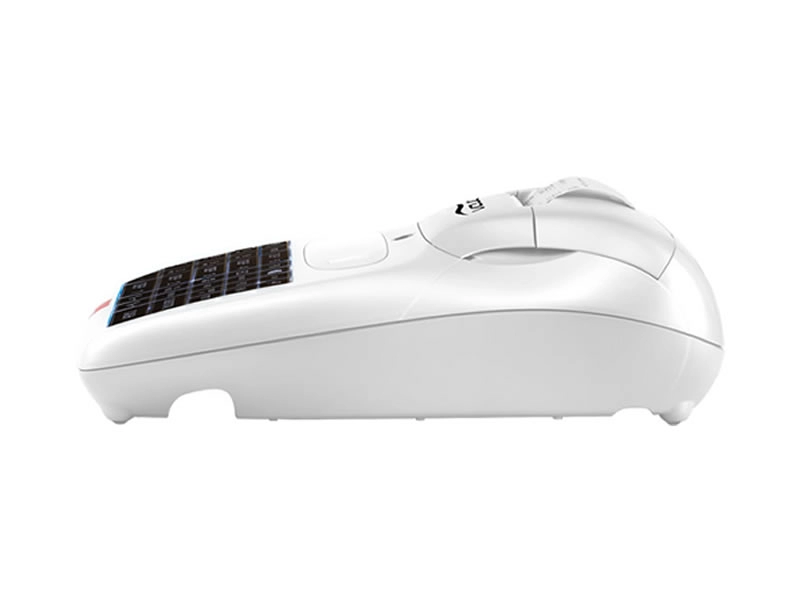

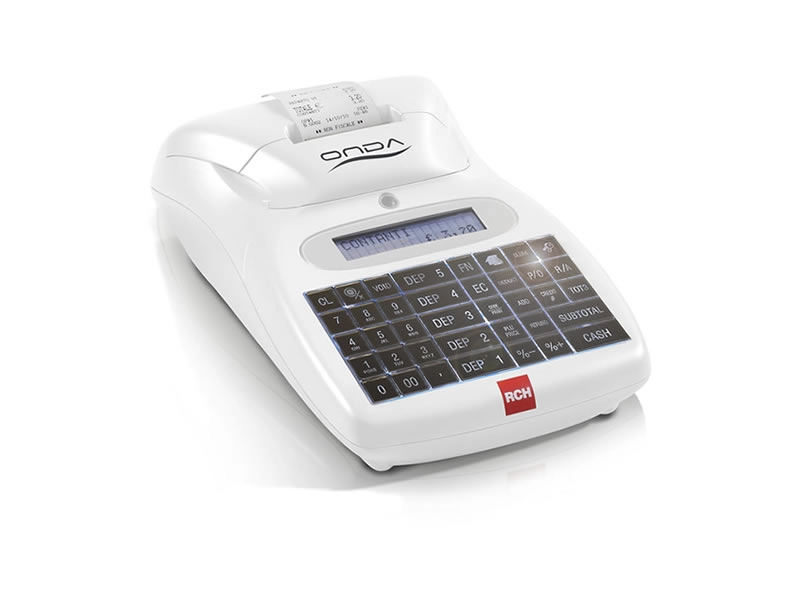

Cash registers ONDA R


Design, technology and reliability for our best seller among cash registers with its unmistakable backlit and patented Rch keyboard.

Onda R


Suitable for these sectors

Find out how this product can help you do more for your business in less time.

Main features

Customisable graphic functions

32 characters per print line, 2 customisable logos

Departments and PLU

5 standard keyboard departments, expandible to 20, programmable LALO-HALO. Up to 1000 PLU with numeric code (EAN/UPCA) and 20-character description


Daily reports and period reports by department, VAT rate, PLU, time slot

Clerk management

Up to 4 clerks with login/logout, name and password

Technical specifications

  • Operator: Backlit LCD, 2 lines of 16 alphanumeric characters, size 10 mm

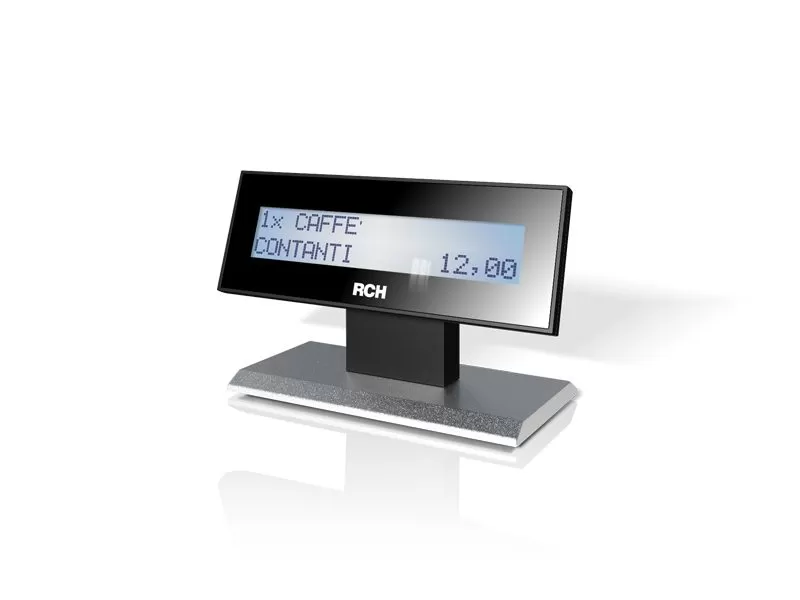

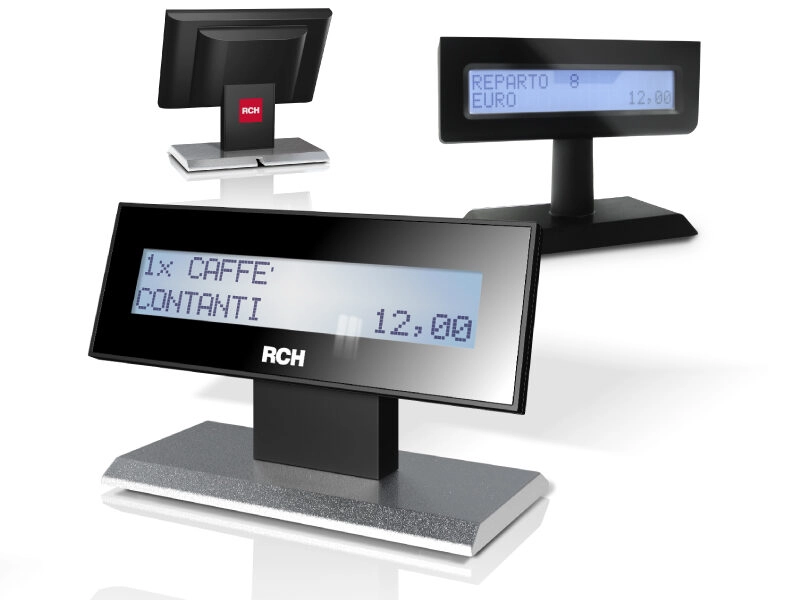

  • Customer: Backlit LCD, 1 line of 16 alphanumeric characters, size 15 mm

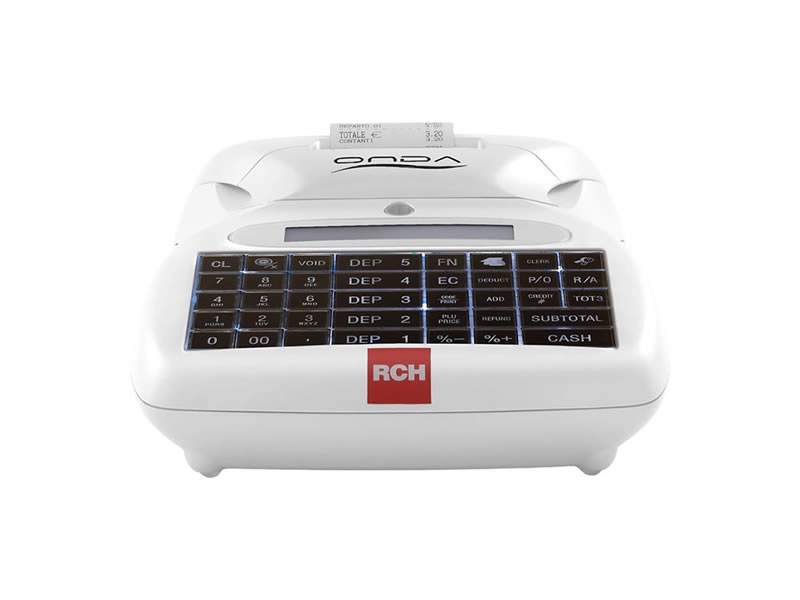

Standard keyboard with 38 configurable keys (max 45),


High resolution graphic termal printer

Printing speed

90 mm/sec. – 8 dot/mm.

Paper roll

Width 57,5 mm / Diameter 50 mm

Printing system

Easy loading with manual cutter

  • 1 RS 232 serial port with RJ45 connector for PC and barcode reader
  • 1 RJ11 connector for 12 V cash drawer
  • 1 ethernet
  • 1 micro USB for PC e USB pendrive

Compact equipped with compartment for cable disappearance


Paper out (roll finished), print head temperature, printer cover open

Power Supply

External power supply, output 12Vdc/36W

Dimensions and weight

L222 P346 H112 mm – 2000 g


Carriage bag for outdoor use
