T6 handheld device

T6 handheld device

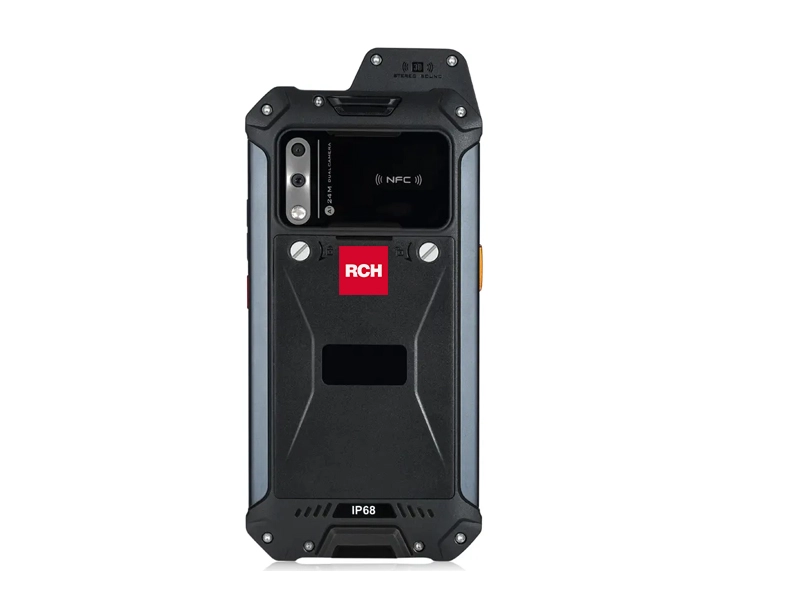

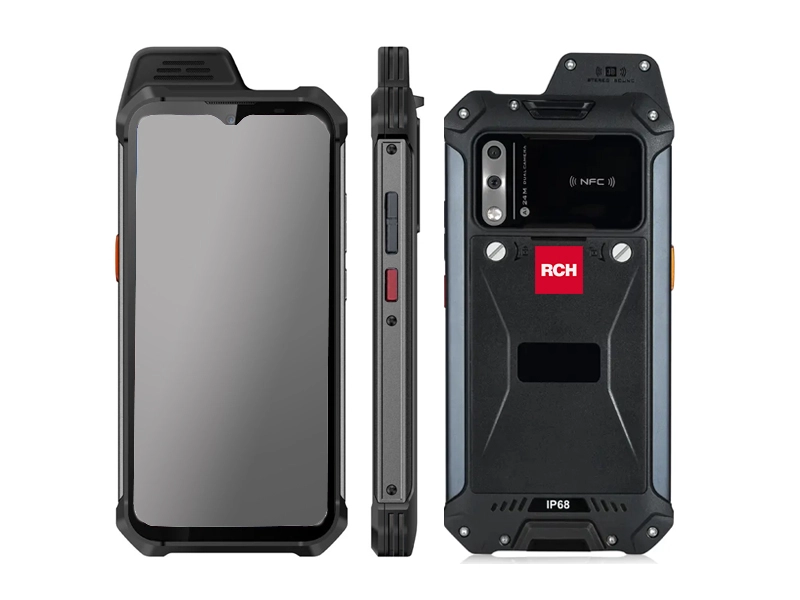

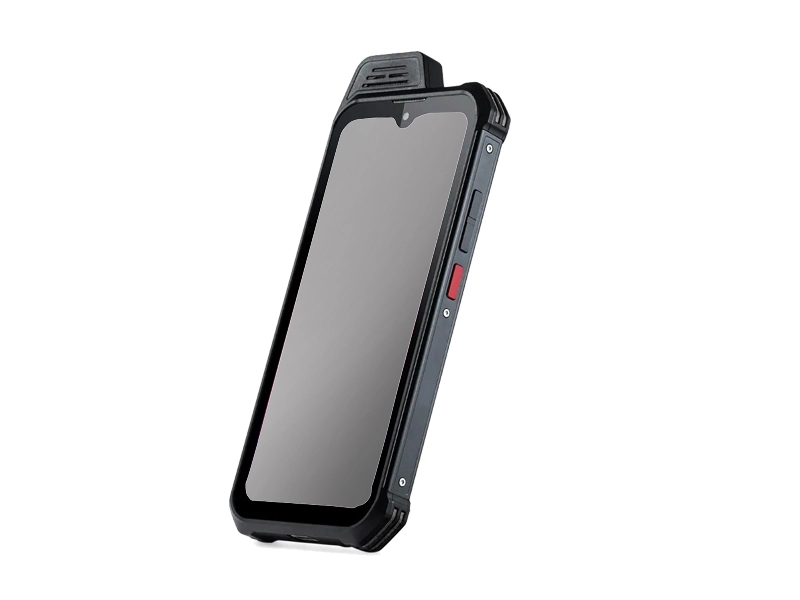

The T6 is a mobile payment terminal designed to accelerate digital payment acceptance processes. Equipped with a built-in NFC reader on its rear panel, alongside the rear cameras, the T6 Pay simplifies contactless payment processing. Additionally, this device proves equally efficient as an order-taking terminal for food service establishments.

Its long-lasting battery (5000mAh) recharges quickly, ensuring continuous use throughout long workdays. The Android 11 operating system provides an optimal working platform, allowing users to manage operations efficiently.

Dustproof and waterproof (it can be continuously immersed at depths greater than one meter), the IP68-certified T6 terminal is engineered to withstand the most extreme conditions. Its robustness and resistance to harsh environments make this device a reliable companion for professionals requiring a solid and versatile tool for their daily activities.

T6

Technical specifications

DIMENSIONS AND WEIGHT

175 mm x 82 mm x 16 mm
0,320 kg

BATTERY

3.8V/5000mAh

OPERATING SYSTEM

Android 11

CPU

MTK6765, 8 core, 2.35 GHz + 1.75 GHz

MEMORY

ROM: 64GB
RAM: 4GB

DISPLAY

1520 x 720 px resolution , 6,3″, format 20:9

Wireless LAN

IEEE 802.11 (A, B, G, N, AC, D, H, I, R, K, V, W, MC)
Dual frequency 2.4GHz & 5 GHz

Bluetooth

5.0

GSM

B5/850, B8/900, B3/1800, B2/1900

WCDMA

B1, B2, B4, B5, B8

4G LTE

FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/
B25/B26/28A/28B
TDD: B34/B38/B39/B40/B41

GPS

GPS, A-GPS, Glonass, BeiDou

NFC

13.56MHz

SENSORS
  • Fingerprint
  • Light sensor
  • Magnetometer
  • Motion sensor
  • Proximity sensor
Camera

5 MP front camera
24 MP + 2 MP rear camera

Audio

2W front-facing speakers, receiver, voice assistant, USB-C headphone jack

Interfaces
  • 1 x nano SIM slot
  • 1 x nano SIM or microSD slot (up to 128GB)
IP rating

IP68

Operating temperature

From -10°C to 50°C
Operating temperature range: -10°C to 50°C

Shock resistance

1.5 m drop test passed on concrete per MIL-STD-810G (within the operating temperature range)

What's in the box

Power adapter
USB cable
Screwdriver
Quick guide
