Android Cash register APE 3

APE 3

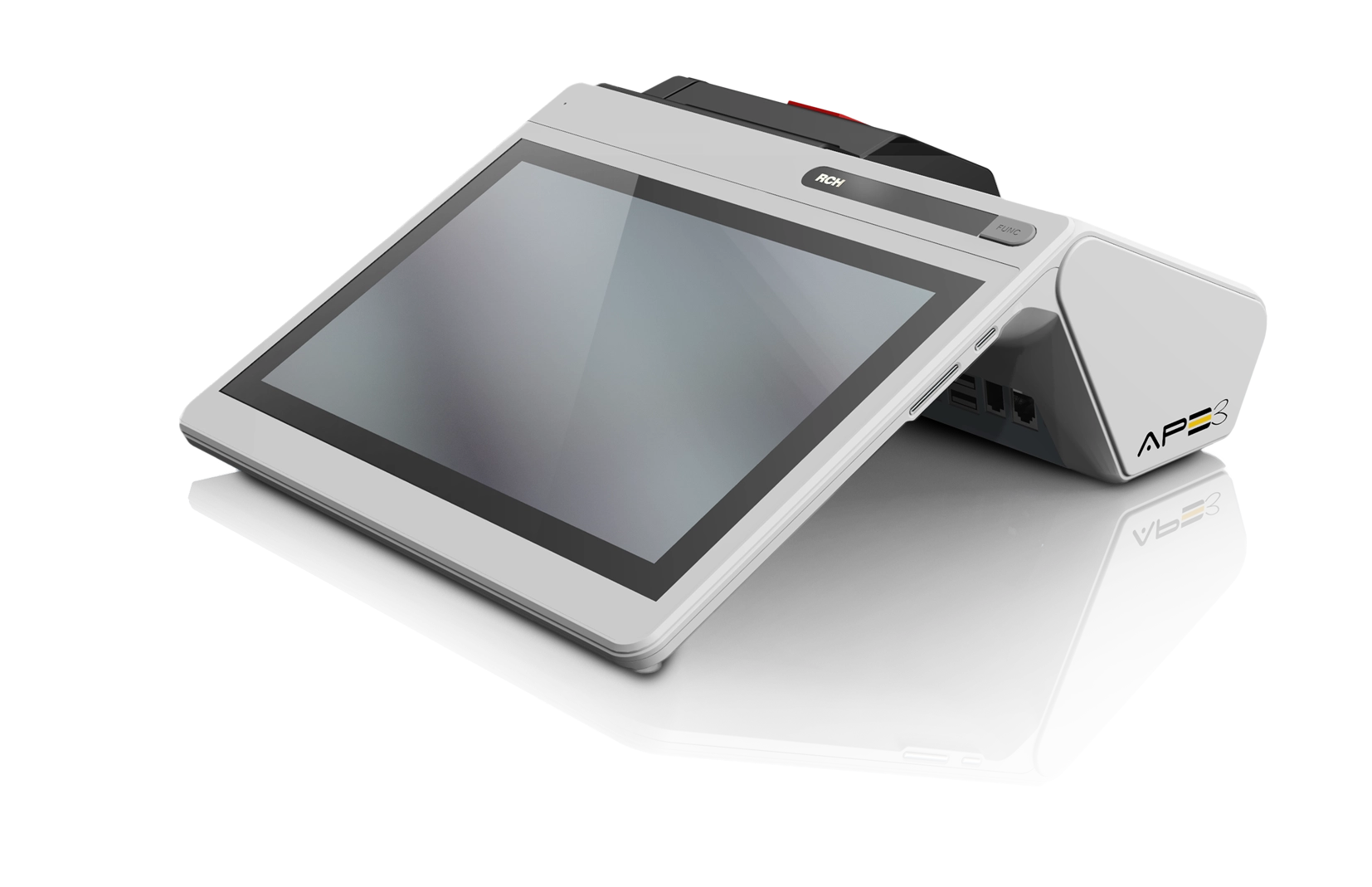

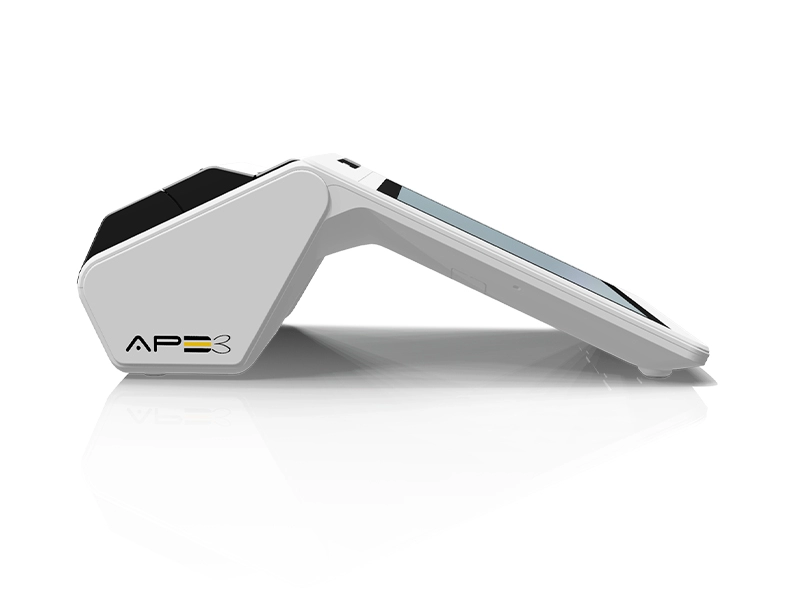

APE 3 is RCH’s latest Android-powered solution. This all-in-one POS system features a compact and space-saving design, incorporating a high-quality thermal printer with 8 dots per mm resolution. The 10-inch touchscreen with In-Plane Switching (IPS) LCD technology provides operators with high-definition images, uniform brightness, and wide viewing angles.

The rear interface includes a 4-inch color screen and an autofocus camera. The customer-facing screen allows for the display of sales cart with item details.

The APE 3 POS terminal runs on Android 13 and can be integrated with RCH management software and applications. It offers easy updates through mobile device management features.



APE 3

Technical specifications

Dimensions and weight

L268 x P307 x H118 mm – 1900 g

Monitor

4-inch color TFT display, 16:10 aspect ratio, capacitive screen, 800×480 resolution

Operator touchscreen keyboard

10.1-inch color TFT, 16:10, capacitive touch, 1280×800, high brightness

Printer

High-resolution thermal printer with easy paper loading

Printing speed

200 mm/sec – 8 dots/mm

Paper roll

Width  80mm +/- 0.5 mm, diameter 80 mm

Printing system

Easy loading with automatic cutter

CPU

Qualcomm Snapdragon Octa-Core 2GHz

Operating system

Android 13

Storage memory

64GB eMMC

RAM memory

4GB

Internal peripherals
  • Keyboard: 1 power key, 2 volume keys, 1 function key.
  • Indicator: 1 LED indicator.
  • SIM slots: 2 Nano SIM slots.
Camera

autofocus

Available networks

LTE/WCDMA/GPRS/WiFi/Bluetooth

Audio

1W speaker, microphone

Interfaces
  • 1 RJ12 connector for cash drawer, 24V
  • 1 serial port with RJ11 connector
  • 4 USB ports for external devices
  • 1 Ethernet 10/100 port
  • 1 USB Type-C port (OTG)
Power cable

External power supply: 24VDC 60W output

Customizable features

48-character print lines, custom logo for the establishment signage, and 4 customizable end-of-receipt logos for advertising.

Sensors
  • End of paper
  • Printhead temperature
  • Printer cover
  • Cutter jam prevention sensor
  • Automatic cutter reset on cover opening

Accessories

Print! WiFi
