PRINT!

PRINT!

PRINT is: advanced technology, easy functionality, excellent quality and elegant design all in one.
An extraordinary printer that is perfect for all those situations in which a thermal technology with automatic cutter is needed.
PRINT is ideal for the restaurant, transport and ticketing businesses, or wherever barcode printing is necessary.

PRINT!

Main features

Customizable graphic functions

Possibility to print different font, for a maximum of 48 characters for each line

Features
  • Supports ESC/POS commands
  • Possibility to use it both as kitchen ticket printer and receipt/invoice printer with continuous paper
  • Commando open 24V cash drawer
Characters per line

12×24dots up to 48 Characters per line

Dimensioni caratteri

PAN European Languages (ENG, SPA, FRE, DEU…), Asian Languages: Chinese, Jap, Korean



Barcodes supported

UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODE39/ ITF/ CODABAR/ CODE93/ CODE128/QRCODE

Communication protocol

Compatible with EPSON ESC/POS and STAR command sets

Technical specifications

Type

High quality graphic thermal printer



Printing Speed

300 mm/sec

Printing Resolution

576 dots/ line – 8 dots/ mm



Paper Roll

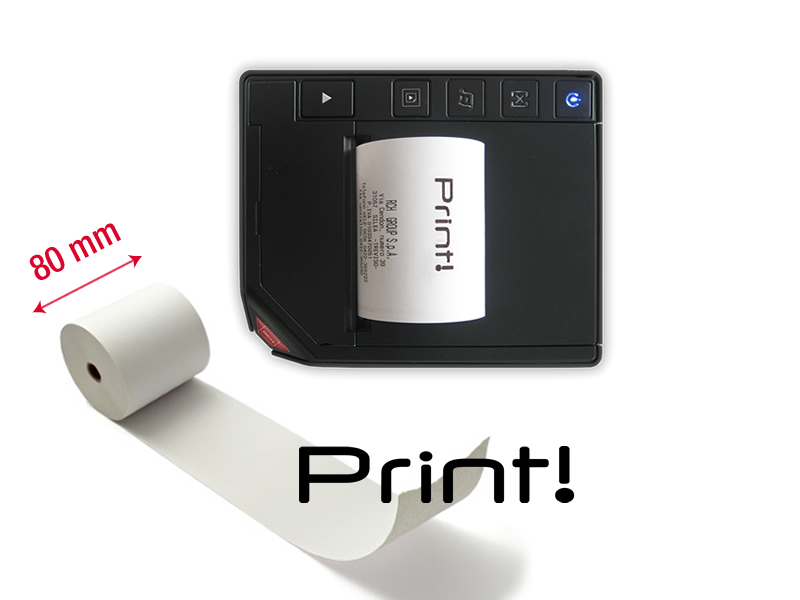

Width: 80 mm +/- 0.5 mm
Diameter: max 83 mm

Changing the paper roll

Easy Loading

Paper cutter

Partial cut

Interfaces
  • 1 RS 232 serial port
  • 1 RJ11 port per cash drawer, 12V
  • 1 Ethernet
  • 1 USB Device
Sensor

paper out (roll finished), print head temperature, printer cover open



Software Driver

Windows X86 / X64 / Linux /OPOS

Dimensions and weight

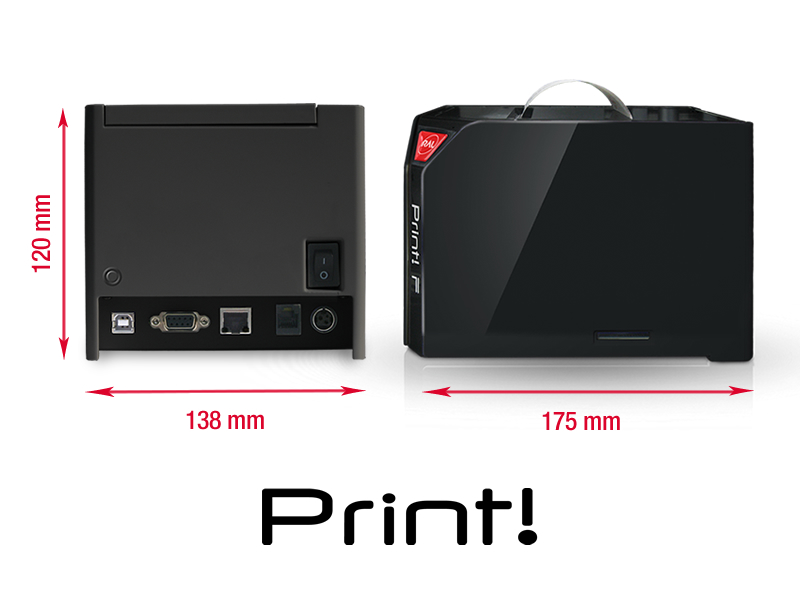

L138 x W175 x H120 mm – 1320g



Power Supply
  • Input: AC 110V~220V, 50~60HZ
  • Output: DC 24V/2.5A
Alimentazione di corrente

Input: AC 110V~220V, 50~60HZ Output: DC 24V/2.5A

Operating Conditions
  • Temperature: 0 ~ 45 ° C
  • Humidity: 10 ~ 80%
Reliability
  • Printing head 150Km
  • Automatic cutter: 1 million cuts
Cash Drawer Connector

DC 24V/1A
