Cash registers A|Box 3

A|BOX 3

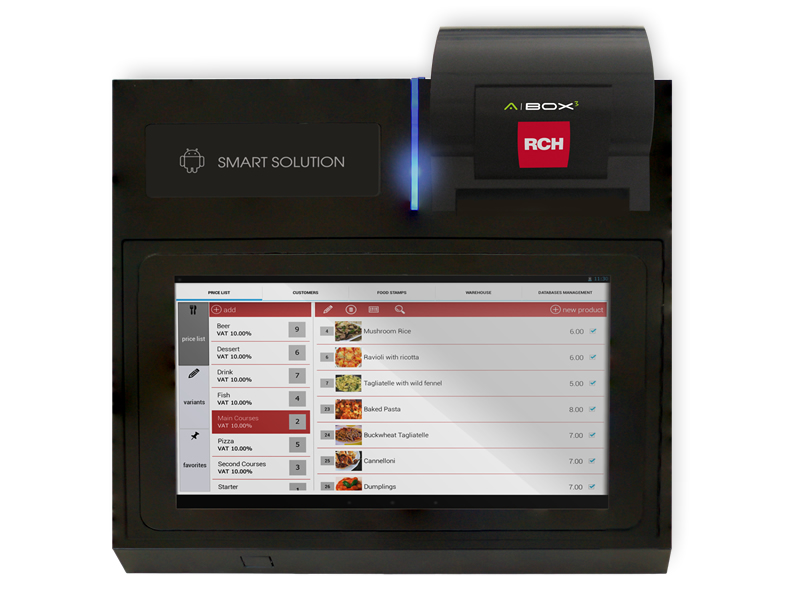

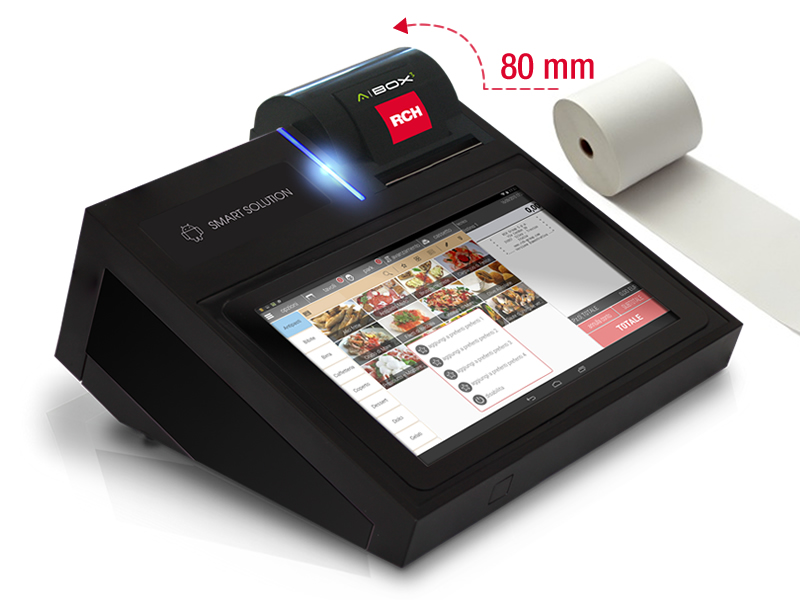

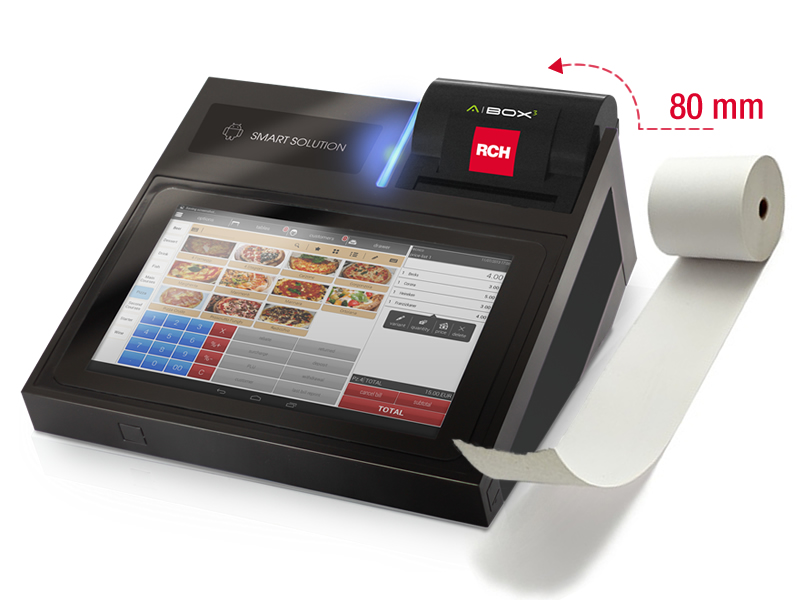

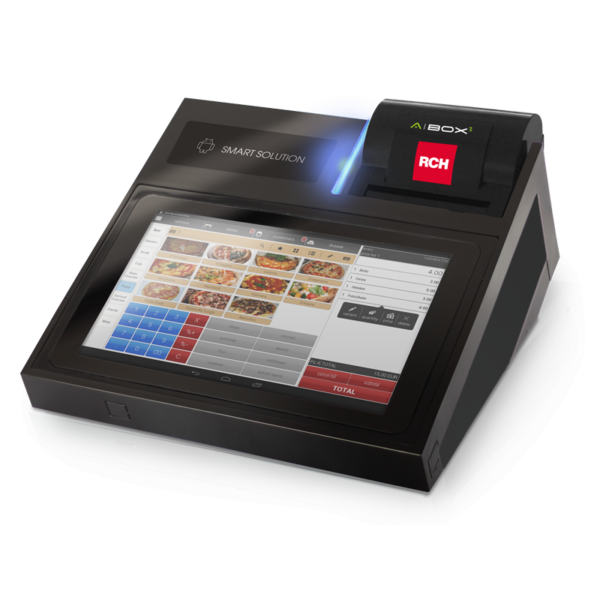

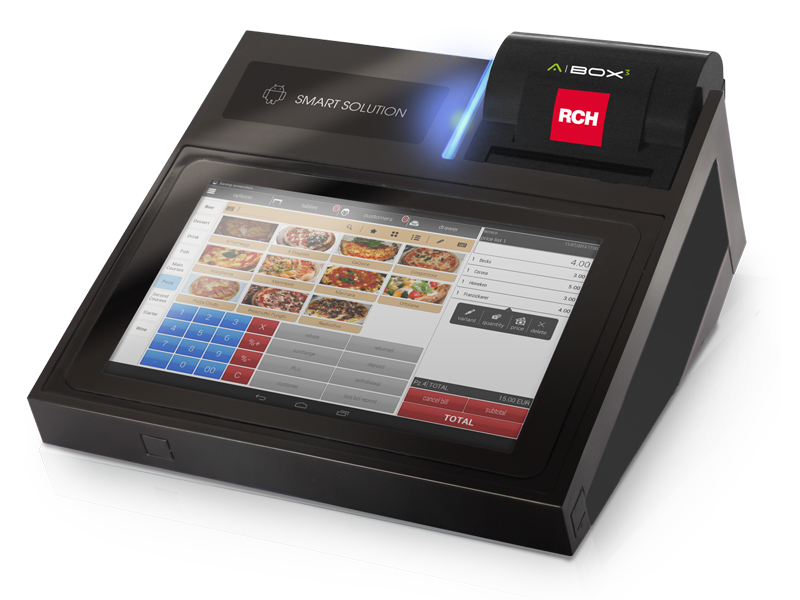

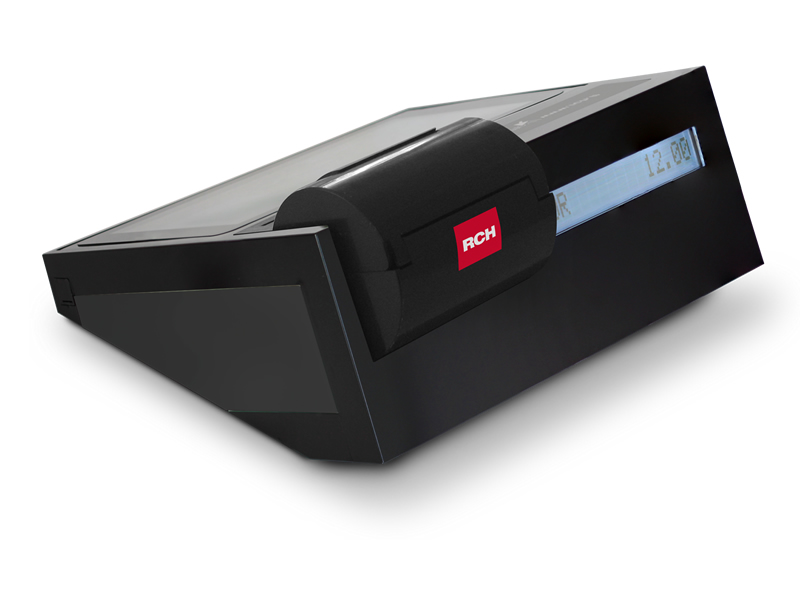

A|Box3, is an 80 mm Android solution with the unique potential of A-Touch System Software. A 10”, 16:10 touch panel display optimises graphics and functionality. Its compact, space saving design makes A|box 3 a winning all-in-one solution.

A|BOX 3

Sectors

Suitable for these sectors

Find out how this product can help you do more for your business in less time.

Technical specifications

Display

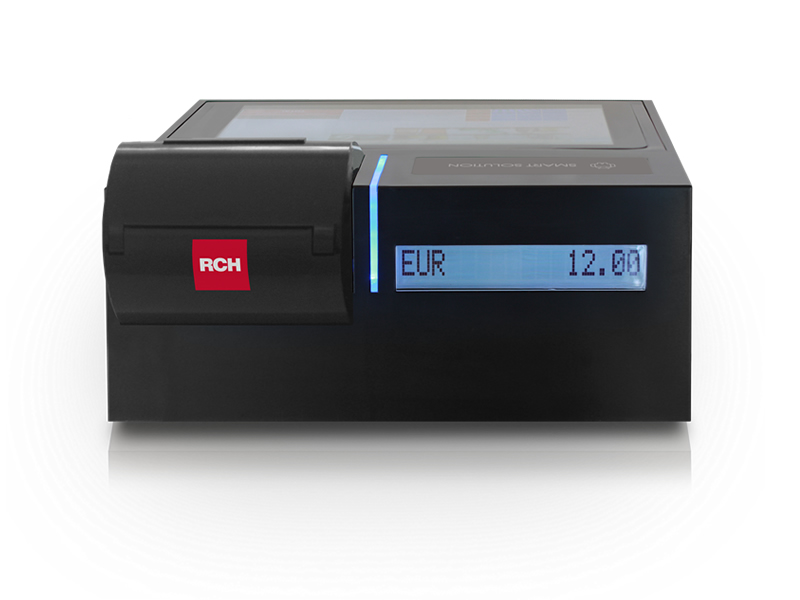

Backlight LCD, 1 line of 16 alphanumeric characters, 15 mm (Customer side)

Video Keyboard

10.1” TFT colour, 16:10 format, 1280×800 resolution, high brightness with Capacitive Touch.

Printer

Thermal type delivering high print quality, easy paper-loading system

Printing speed

150 mm/sec – 8 dots/mm

Paper roll

width 80 mm, diameter 80 mm

Printing system

Easy loading with manual cutter

Interfaces
  • RJ11 adapter for cash drawer connection, 24V
  • 1 x RS 232 serial with RJ45 adapter for connection to PC, for
    upgrade
  • 2 x USB for external peripherals
  • 1 x SD Card
  • 1 x Ethernet 10/100/1000
  • 1 x micro USB
  • 1 internal WiFi (option)
CPU

ARM Cortex A9 Quad Core @1GHz

Operating system

Android 5.0.2 or higher

Storage memory

8 GB Emmc

RAM memory

2GB

Audio

Internal 2 x 2W loudspeakers

Options
  • Integrated iButton Dallas (not fiscal)
  • Integrated NFC reader (not fiscal)
  • External MSR
  • Wi-Fi , Bluetooth

Accessories

Print! 80mm thermal printer
Tablet for order collection
Waiter’s module for ordering
